MicroAerobox Workstations: Models M-300
Features of all MicroAerobox Workstations:
User-Friendly Design: The Microaerophilic workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
The Gas Control Software is accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch O2
sensor calibration, fault assistance and cycle programming.
Workstation has power interruption indicator/Buzzer in the event of an interruption to the mains power supply to the workstation
Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
Safety Measure: The MicroAerobox 300 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient +5°C and 50°C, with temperature uniformity ± 1°C at 37°C.
Touchscreen Features:
- Displays and controls O2, CO2, temperature and humidity (set points and actual)
- Displays and controls main chamber pressure (in PSi)
- Fluorescent Light switch
- UV Light (if chosen) switch
- Internal Socket switch
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications:
Dimensions: W X D X H (in mm)
| External: |
950 X 700 X 750 |
| Internal: |
600 X 550 X 480 |
| Interlock: |
150 X 200 X 180
|
| Main chamber capacity: |
a) Up to 300 Plates (90 X 15 mm petri dishes)
|
| Internal electrical sockets: |
a) Two electrical power sockets inside the chamber
|
| Interlock capacity |
a) Up to 20 Plates (90 X 15 mm petri dishes)
|
| Weight (uncrated) |
a) 120 kg
|
| Safety Features |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220 V-240V AC,50 Hz fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates: |
ISO 9001 : 2015 Certified Company
CE Marked : CE marked product
|
Included Standard Features
12 features
Humidity control (Up to 90% Non-condensing)
Temperature control (Ambient + 5°C to 50°C in 0.1° C increments)
Low gas pressure indicators
Light control (tube light and spot light)
Full width internal shelf
Pair of gloveless Sleeve ports for direct hand access
Internal power sockets x 4
Oxygen level display 0.1% to 25 %
Optional Accessories
20 items
Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
Pair of gloves (for use with high risk samples)
Anaerobic indicator strips
Compressed Air Gas Cylinder with regulator
Nitrogen Gas Cylinder with regulator
Mix Gas Cylinder with regulator
Gallery:

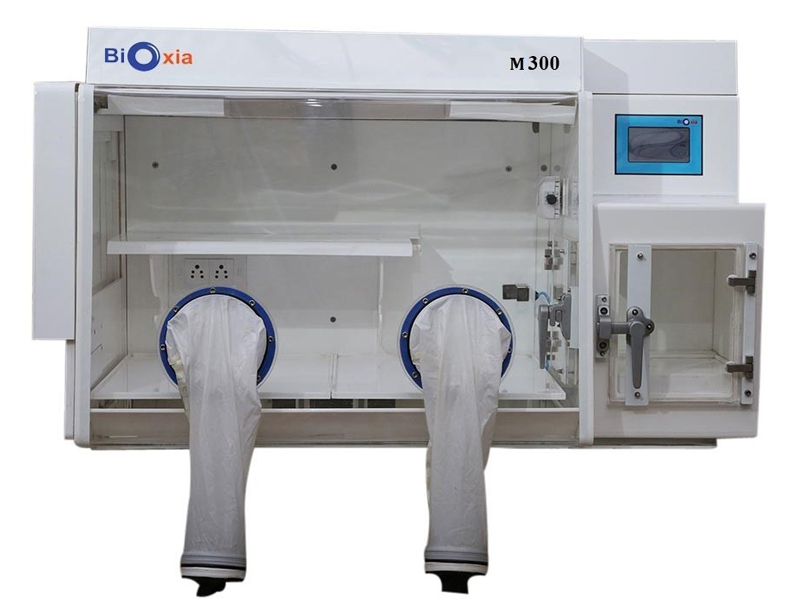

Microaerobox Workstation 300
MicroAerobox Workstations: Models M-500
Features of all MicroAerobox Workstations:
User-Friendly Design: The Microaerophilic workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
The Gas Control Software is accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch O2
sensor calibration, fault assistance and cycle programming.
Workstation has power interruption indicator/Buzzer in the event of an interruption to the mains power supply to the workstation
Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
Safety Measure: The MicroAerobox 500 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient +5°C and 50°C, with temperature uniformity ± 1°C at 37°C.
Touchscreen Features:
- Displays and controls O2, CO2, temperature and humidity (set points and actual)
- Displays and controls main chamber pressure (in PSi)
- Fluorescent Light switch
- UV Light (if chosen) switch
- Internal Socket switch
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications:
Dimensions: W X D X H (in mm)
| External: |
1350 X 720 X 770 |
| Internal: |
900 X 560 X 480 |
| Interlock: |
200 X 240 X 230
|
| Main chamber capacity: |
a) Up to 650 Plates (90 X 15 mm petri dishes)
|
| Internal electrical sockets: |
a) Four electrical power sockets inside the chamber
|
| Interlock capacity |
a) Up to 30 Plates (90 X 15 mm petri dishes)
|
| Weight (uncrated) |
a) 140 kg
|
| Safety Features |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220 V-240V AC,50 Hz fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates: |
ISO 9001 : 2015 Certified Company
CE Marked : CE marked product
|
Included Standard Features
12 features
Humidity control (Up to 90% Non-condensing)
Temperature control (Ambient + 5°C to 50°C in 0.1° C increments)
Low gas pressure indicators
Light control (tube light and spot light)
Full width internal shelf
Pair of gloveless Sleeve ports for direct hand access
Internal power sockets x 4
Oxygen level display 0.1% to 25 %
Optional Accessories
20 items
Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
Pair of gloves (for use with high risk samples)
Anaerobic indicator strips
Compressed Air Gas Cylinder with regulator
Nitrogen Gas Cylinder with regulator
Mix Gas Cylinder with regulator
Gallery:

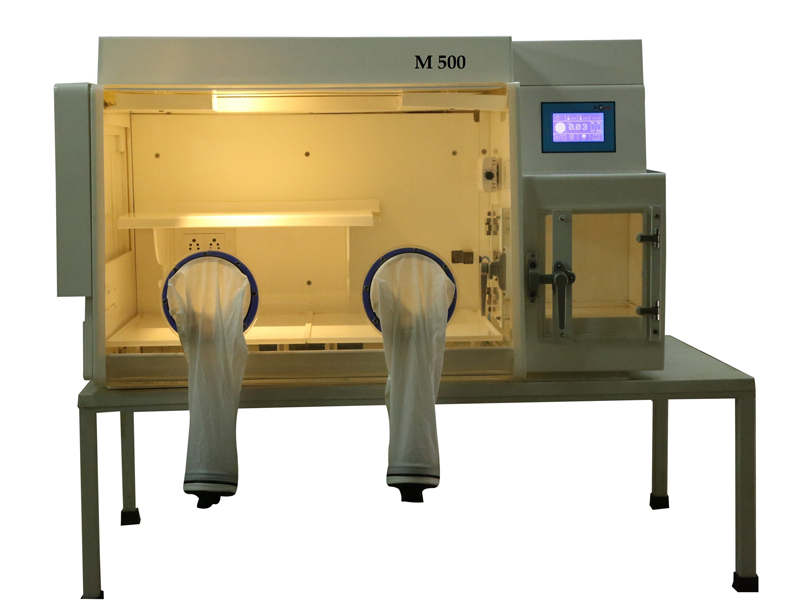

Microaerobox Workstation M-500
MicroAerobox Workstations: Models M-800
Features of all MicroAerobox Workstations:
User-Friendly Design: The Microaerophilic workstation has an ergonomically friendly viewing panel with a 10% angle, utility port for manual purging, foot switches for chamber operation, gas nozzle ports, and an internal spotlight. Glove ports are easy to use and our gloveless sleeves allow simple direct hand access.
The Gas Control Software is accessible through an easy to use colour touchscreen. There is also a USB port with a data key containing continuous storage of event log data, one-touch O2
sensor calibration, fault assistance and cycle programming.
Workstation has power interruption indicator/Buzzer in the event of an interruption to the mains power supply to the workstation
Crafted from durable, non-corrosive acrylic resin (6mm or 8mm thickness), the entire shell construction ensures longevity. The front panel combines acrylic resin with a transparent sheet for optimal visibility and insulation.
Forced Purging System: Automatic forced purging systems for the main chamber and interlock chamber, with adjustable purging periods, guaranteeing a controlled, stable environment.
Safety Measure: The MicroAerobox 800 includes a temperature overshoot controller, condensate controller technology, and a pressure relief valve to release excess pressure inside the chamber.
Temperature Control: A heating element with a controller maintains the chamber's temperature between ambient +5°C and 50°C, with temperature uniformity ± 1°C at 37°C.
Touchscreen Features:
- Displays and controls O2, CO2, temperature and humidity (set points and actual)
- Displays and controls main chamber pressure (in PSi)
- Fluorescent Light switch
- UV Light (if chosen) switch
- Internal Socket switch
- Audio & Visual alarm for low or excess oxygen level
- Audio & Visual alarm for gas cylinder pressures, chamber pressure and temperature
- Audio & Visual alarm for Water Level Indicator for excess pressure regulator
Technical Specifications:
Dimensions: W X D X H (in mm)
| External: |
1640 X 720 X 770
|
| Internal: |
1200 X 560 X 480 |
| Interlock: |
200 X 240 X 230
|
| Main chamber capacity: |
a) Up to 850 Plates (90 X 15 mm petri dishes)
|
| Internal electrical sockets: |
a) Four electrical power sockets inside the chamber
|
| Interlock capacity |
a) Up to 30 Plates (90 X 15 mm petri dishes)
|
| Weight (uncrated) |
a) 165 kg
|
| Safety Features |
Excess pressure relief valve
Temperature overshoot controller
|
| Power Input: |
220 V-240V AC,50 Hz fitted with plug and resettable
overcurrent breaker fitted for protection
|
| Certificates: |
ISO 9001 : 2015 Certified Company
CE Marked : CE marked product
|
Included Standard Features
12 features
Humidity control (Up to 90% Non-condensing)
Temperature control (Ambient + 5°C to 50°C in 0.1° C increments)
Low gas pressure indicators
Light control (tube light and spot light)
Full width internal shelf
Pair of gloveless Sleeve ports for direct hand access
Internal power sockets x 4
Oxygen level display 0.1% to 25 %
Optional Accessories
20 items
Internal HEPA to ISO 14644 Class 4 / EU GMP Grade A
Pair of gloves (for use with high risk samples)
Anaerobic indicator strips
Compressed Air Gas Cylinder with regulator
Nitrogen Gas Cylinder with regulator
Mix Gas Cylinder with regulator
